PL-WDAP-1750AC-ETS
Fiyatı: 5387.74
Fiyatlara KDV dahil edilmiştir.
Markası: PLANET
Kodu: BM-9266
Stok: 3 adet
Bar Kodu: 4711605280570
Durumu: Yeni
Açıklaması

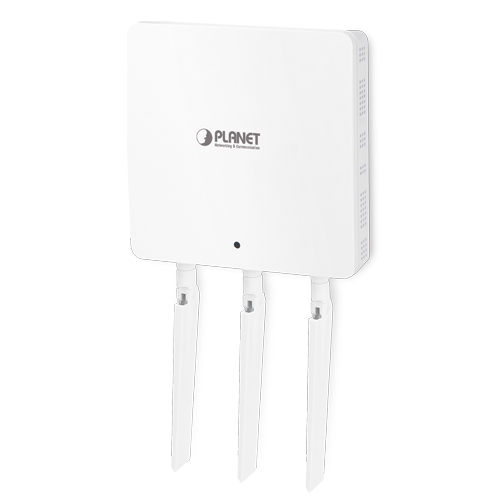

1750Mbps 802.11ac Dual Band Wall Mount Enterprise Wireless Access Point (Built-in 3 x 2dBi SMA Anten-ETSI channel for European market)
Standard Compliant Hardware Interface
- Complies with IEEE 802.11ac (draft 2.0) and IEEE 802.11a/b/g/n standards
- 2 x 10/100/1000BASE-T port with PoE supporting 802.3at and 802.3af PSE (Power Sourcing Equipment)
- IEEE standard 802.3af/at PoE design
RF Interface Characteristics

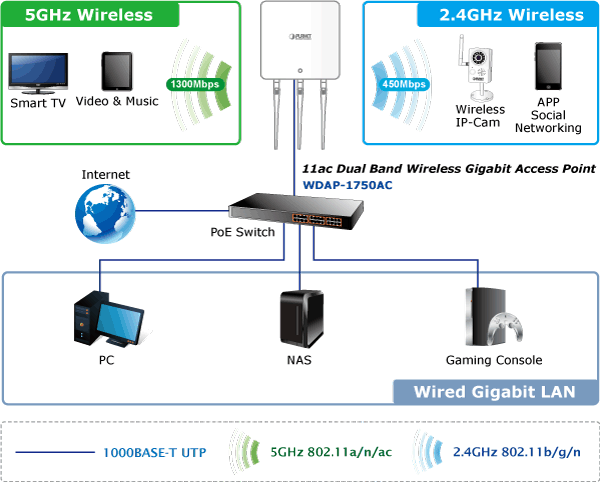

- Features 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) concurrent dual band for more efficiency of carrying high load traffic
- 3T3R MIMO technology for enhanced throughput and coverage
- Provides multiple adjustable transmit power control
- High speed up to 1.75Gbps (450Mbps for 2.4GHz + 1300Mbps for 5GHz) wireless data rate
Comprehensive Wireless Advanced Features
- Multiple Wireless Modes: AP,WDS PtP/ PtMP, and WDS Repeater
- Supports up to 32 multiple-SSIDs (2.4GHz + 5GHz) to allow users to access different networks through a single AP
- Supports VLAN function to limit the clients to access the specific internal network resource
- Supports WMM (Wi-Fi Multimedia) and wireless QoS to enhance the efficiency of multimedia application
- Supports wireless schedule to automatically enable or disable the wireless function based on predefined schedule
Secure Network Connection
- Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES encryption) and 802.1x Radius Authentication
- Supports MAC address filtering
Easy Installation & Management
- Flexible deployment with standard 802.3at PoE/ PD supported
- Web-based configuration of HTTP/HTTPS/SSH/CLI
- SNMP-based management interface
- System status monitoring includes DHCP Client and System Log
| Hardware Specifications | |
| Interfaces LAN |
2 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X |
| Antennas Gain | 3 x 2dBi SMA antenna |
| Reset Button | Press over 5 seconds to reset the device to factory default |
| LED Indicators |
PWR Allow LED to turn off via software control |
| Material | Plastic |
| Dimensions (W x D x H) | 182 x 182 x 30 mm |
| Weight | 470g |
| Power Requirements |
DC Input: 12V DC, 4A12V DC, 4A PoE Input: IEEE 802.3at PoE+, 48~56V DC in-line power |
| Power Consumption | 20W (without PSE) |
| ESD Protection | ±8kV air-gap discharge, ±4kV contact discharge |
| Mounting | Wall mount / Desktop |
| Wireless Interface Specifications | |
| Standard |
IEEE 802.11ac (draft 2.0) 5GHz IEEE 802.11a/n 5GHz IEEE 802.11b/g/n 2.4GHz |
| Operating Channels |
2.4GHz America/ FCC: 1~11 Europe/ ETSI: 1~13 5GHz: America/ FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 Europe/ ETSI: 36, 40, 44, 48 *5GHz channel list will vary in different countries according to their regulations. |
| Antenna Structure |
802.11ac: 3T3R MU-MIMO 802.11n: 3T3R MIMO |
| Modulation | DSSS |
| Data Modulation |
802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK) |
| Band Mode | 2.4G / 5G concurrent mode |
| Frequency Range |
2.4GHz: America/ FCC: 2.412~2.462GHz Europe/ ETSI: 2.412~2.484GHz 5GHz: America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz Europe/ ETSI: 5.180~5.240GHz |
| Channel Width |
802.11ac: 20/40/80MHz 802.11n: 20/40MHz |
| Transmission Distance |
802.11ac (draft): up to 30m 802.11n: up to 70m 802.11g: up to 30m The estimated transmission distance is based on the theory. The actual distance will vary in different environments. |
| Max. RF Power |
5GHz: 802.11ac (VHT20/40/80): 27.5dBm @MCS0 802.11ac (VHT20/40/80): 22.5dBm @MCS7 802.11ac (VHT20/40/80): 19.5dBm @MCS9 802.11n (HT20/40): 27.5dBm @MCS0/MCS8 802.11n (HT20/40): 22.5dBm @MCS7/MCS15 802.11a: 26.5dBm @6Mbps 22.5dBm @54Mbps 2.4GHz: 802.11n (HT20/40): 27.5dBm @MCS0 802.11n (HT20/40): 22.5dBm @MCS7 802.11g: 27.5dBm @6Mbps 802.11g: 23.5dBm @54Mbps 802.11b: 27.5dBm @1Mbps |
| Receive Sensitivity |
5GHz: 802.11ac (VHT20): -64dBm @MCS9 802.11ac (VHT40): -61dBm @MCS9 802.11ac (VHT80): -58dBm @MCS9 802.11n (HT20): -87dBm @MCS0, -67dBm @MCS7 802.11n (HT40): -84dBm @MCS0, -63dBm @MCS7 802.11a: -71dBm @54Mbps 2.4GHz: 802.11n (HT20/40): -87dBm @MCS0 802.11n (HT20/40): -67dBm @MCS7 802.11g: -70dBm @54Mbps 802.11b: -90dBm @1Mbps |
| Software Features | |
| Wireless Mode |
■ AP (Access Point) ■ Repeater (WDS + AP) ■ WDS PTP (Point to Point) ■ WDS PTMP (Point to Multipoint) |
| Encryption Security |
■ WEP (64/128-bit) encryption security ■ WPA / WPA2 (TKIP/AES) ■ WPA-PSK / WPA2-PSK (TKIP/AES) ■ 802.1x Authenticator |
| Wireless Security |
Wireless MAC address filtering Supports WPS (Wi-Fi Protected Setup) Enable/ Disable SSID Broadcast |
| Wireless Advanced |
WMM (Wi-Fi Multimedia), Max. Associated Station Number Multiple SSIDs: up to 16 at 2.4GHz and 16 at 5GHz Wireless Isolation: Enable it to isolate each connected wireless client from communicating with each other WLAN L2 isolation (AP mode) Provides wireless statistics |
| Max. Clients |
Wired: 253 2.4GHz Wireless: 50 5GHz Wireless: 50 |
| LAN |
Built-in DHCP server supporting static IP address distribution Supports UPnP Supports 802.1Q VLAN |
| System Management |
Web-based (HTTP) management interface SNTP synchronization Easy firmware upgrade Supports scheduling reboot Supports Smart Discovery Utility |
| Standards Conformance | |
| IEEE Standards |
IEEE 802.11ac (draft 2.0, 3T3R, up to 1300Mbps) IEEE 802.11n (3T3R, up to 450Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control |
| Other Protocols and Standards | CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP |
| Environment & Certification | |
| Temperature |
Operating: 0 ~ 50 degrees C Storage: -20 ~ 60 degrees C |
| Humidity |
Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing) |
| Regulatory | FCC, CE |
