Interfaces |
|
Ethernet |
• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0 |
|

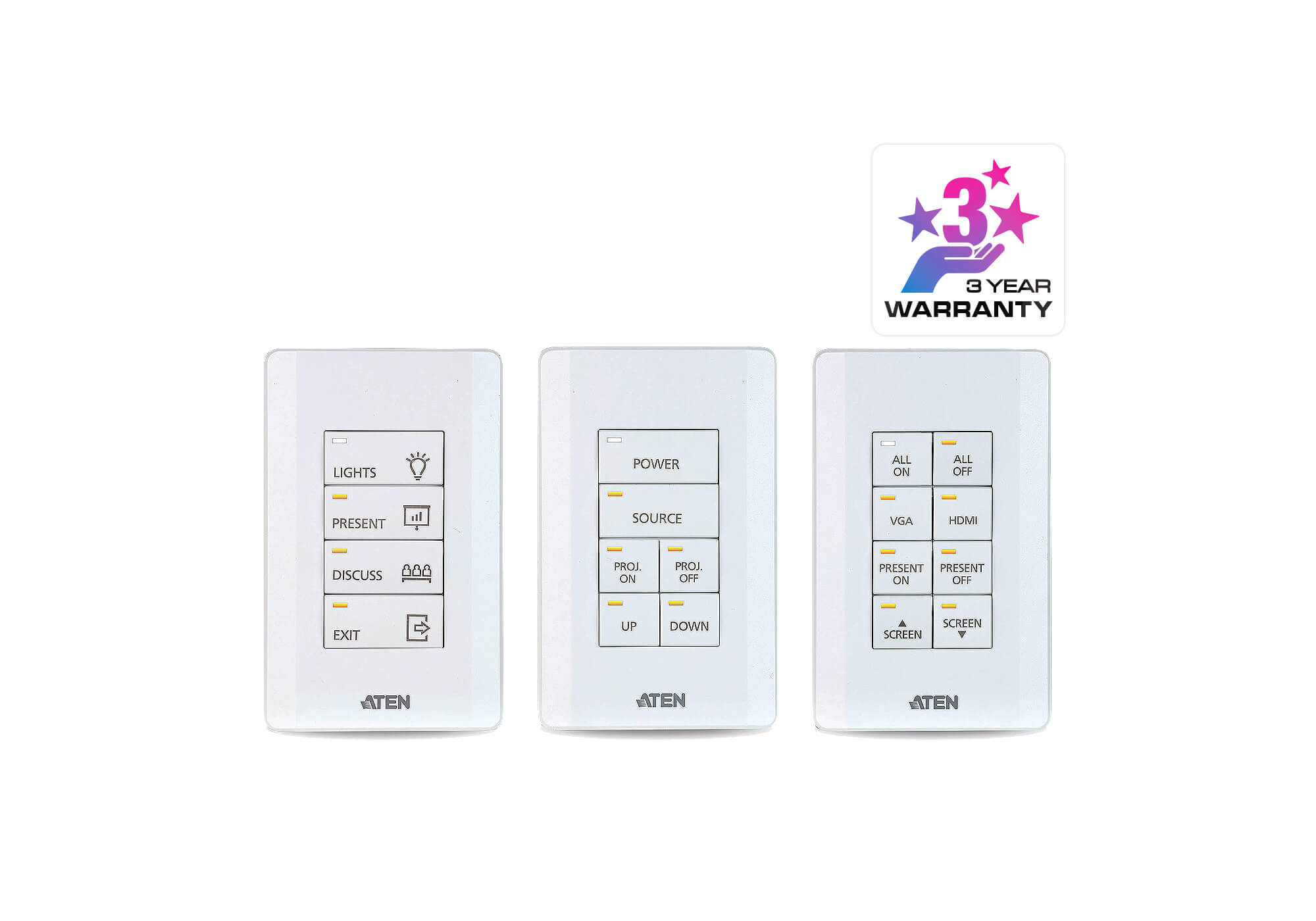

Keypad Layout |
4~8 buttons customizable in 14 keypad layouts |
|
Switches |
|
Controller ID |
1 x 16-segment Switch |
|
Keypad ID |
1 x 8-segment Switch |
|
Reset Button |
1 x Semi-recessed Pushbutton |
|
Power Consumption |
DC5V:1.25W:6BTU
DC48V:1.58W:7BTU |
|
Environmental |
|
Operating Temperature |
0 – 50°C |
|
Storage Temperature |
–20 – 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
Housing |
Plastic |
|
Weight |
0.13 kg ( 0.29 lb ) |
|
Dimensions (L x W x H) |
11.63 x 7.06 x 3.89 cm
(4.58 x 2.78 x 1.53 in.) |
|
Faceplate Dimension (L x W x H) |
11.92 x 7.42 x 0.92 cm
(4.69 x 2.92 x 0.36 in.) |
